Create
Turn your design into a vector file using our template and follow the guide below.
-
Quote
We check your files for FREE and get you a quote based on lasertime and the cost of materials you use.
-
Cut

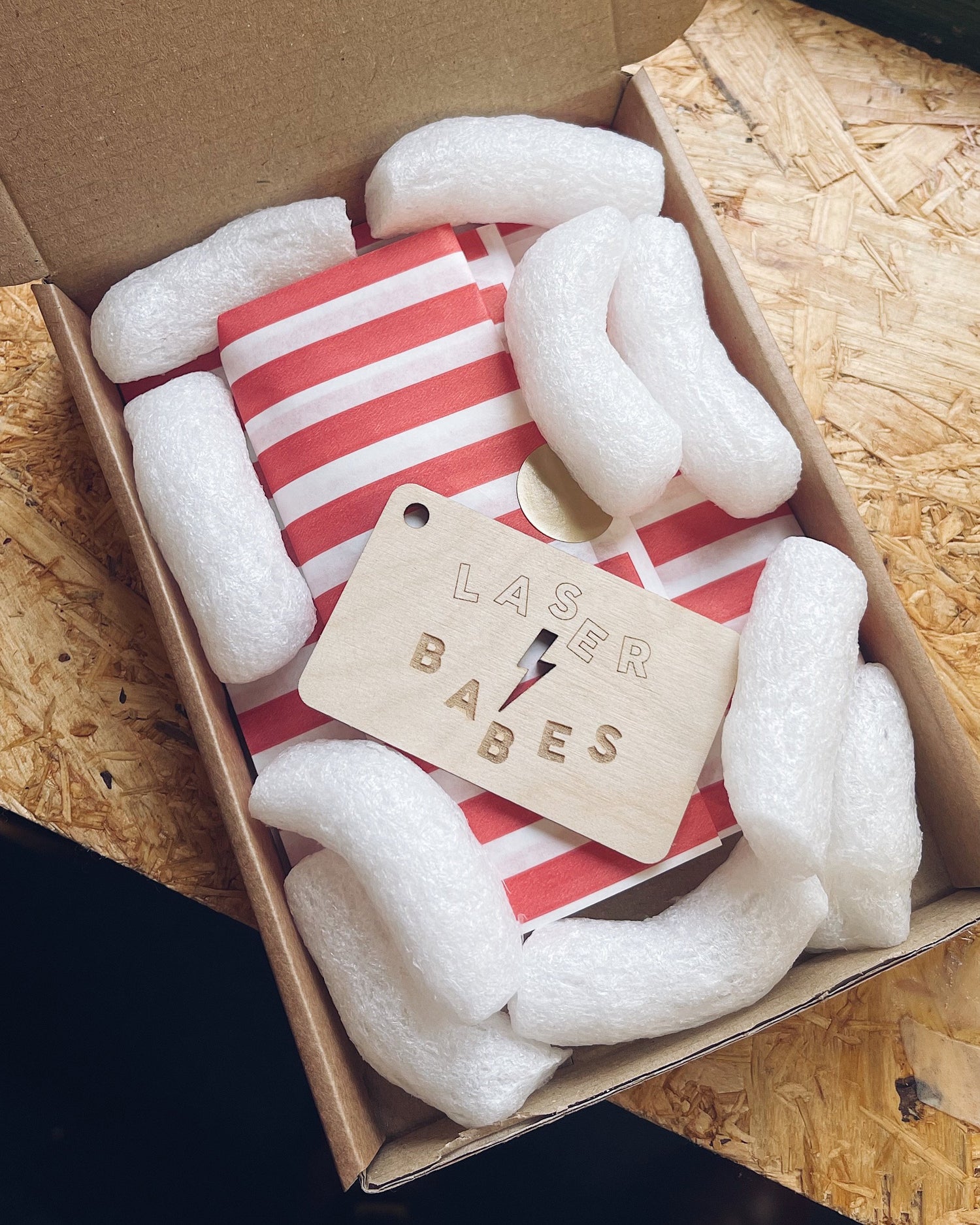

Once payment has been received we cut pack and send your beautiful creations to you.
-
Prepare Your Files
- Create a vector file the same size as our maximum work area 600mm x 400mm. Ensure your work space is set to RGB mode and your work area measurements are in mm.

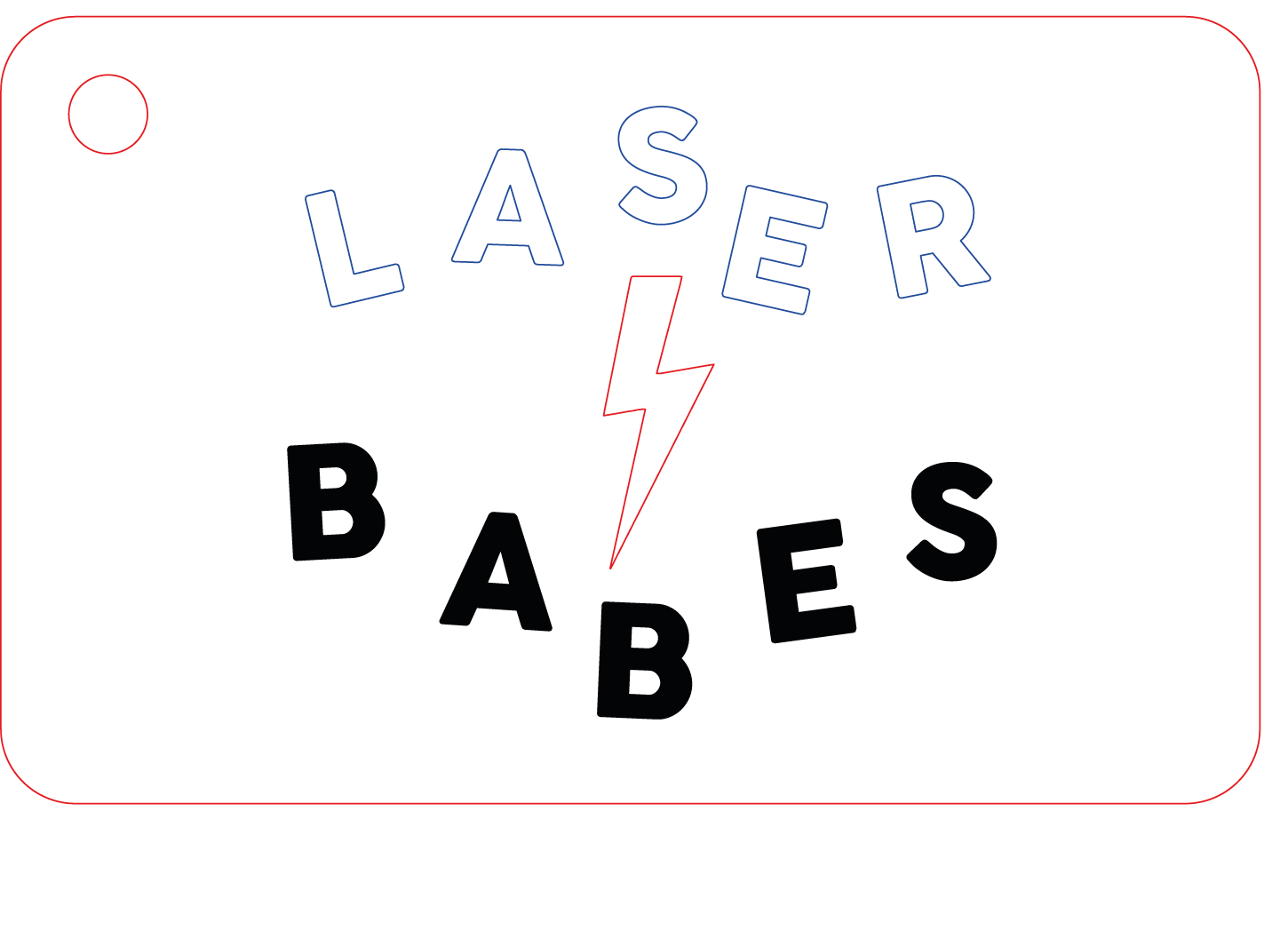

Choose your cut
We offer 3 different ways to cut your material :-
- cutting
- etching/scoring
- raster engraving
-
cutting
Cuts all the way through the material. Any lines to be cut need the following settings:-
---
colour RGB red (255, 0, 0)
stroke weight 0.25pt (hairline)
-
etching/scoring
This cut marks the material surface (does not go all the way through).
Any lines to be etched/scored need the following settings:-
---
- colour RGB blue (R0, G0, B255)
- stroke weight set to 0.25pt (hairline)
-
raster engrave
This cut allows an area on the surface of the material to be engraved.
Fill engraved ares in black and and online with the following settings:-
---
- colour RGB black line (R0, G0, B0)
- stroke weight set to 0.25pt (hairline)

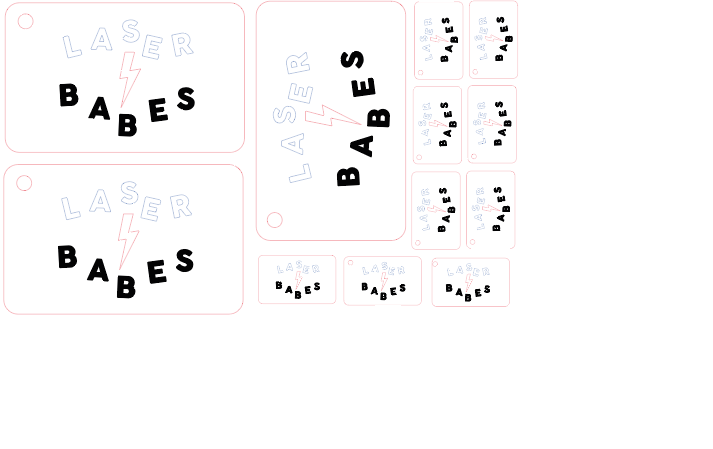

lay it out
- tile up all the pieces you need cut on your sheet
- leave a 2mm gap between each component
- release all clipping masks
- ungroup all items
- remove duplicate/ overlapping lines
- leave 5mm around the edge of the material to avoid parts getting clipped off
save and send
- save you finished file as .ai or .dxf
- name your files by colour or material type
- email your files to hello@laserbabesstudio.co.uk
Pre Quote Checklist :-
- Your file is set to RGB colour mode
- Line stroke weight set to 0.25pt
- Separate files for each different material
- Line stroke weight set to 0.25pt
- All cut lines RGB red (R255 G0, B0)
- All etch/score lines RGB blue (R0, G0, B255)
- All raster engrave lines RGB black (R,0 G0, B0)
- All hidden or duplicated lines have been removed
- Files have been flipped if cutting mirror acrylic
- Minimum of 2mm between all items
- All clipping masks have been removed
